Field Cinema Deluxe DSLR Rig V2

Part # 18-001-0002

Shoulder mounted DSLR rig that adds stability and focus control to the DSLR form factor.
Price: $1,326.00
(total with options listed at checkout)
This product ships in approximately:

Ideal

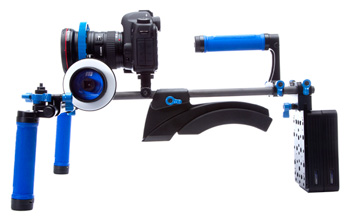

The Redrock DSLR Field Deluxe Cinema Bundle is a comprehensive package for converting video DSLRs to useful cinema production rigs. This rig is ideal for DSLRs that have the ability to output an HD picture to an external monitor while recording.

Having an HD monitor opens new doors like the ability to allow a Camera Assistant to pull focus as opposed to the operator. It also allows users to take full advantage of the features that professional camera-top HD monitors offer.


Please Note Monitor not included, shown for illustrative purposes only.


Camera, lens, and third party accessories pictured are not included with this product

This bundle is compatible with most video DSLRs including the Nikon D90, D300s, D3s**, and Canon 7D, 1D Mark IV**, and 5D MKII. The Redrock DSLR Field Cinema Bundle is designed for handheld use and includes:


  • DSLR baseplate
  • 18" Carbon Fiber Rods
  • microShoulderPad with FieldTechâ„¢
  • Handlebar Rod Clamp with 2 grips
  • Choice of microFollowFocus or microFollowFocus | blue (final bundle price will vary)
  • microBalance adjustable vertical clamp kit
  • 2 microBalance QR Weights (4lbs Total)
  • microHandle top handle for carrying, and low mode shooting
  • microMount (typically used for mounting external monitor)
  • access to video setup tutorials
Weight: 10.1 lb/ 4.6kg (including 4lb counterbalance weight) The Redrock DSLR Field Cinema Bundle does not include camera, external monitor, lens gears, or 35mm lenses. microLensGears are available separately. Please Note: The Field Cinema Bundle places most of the camera weight on the shoulder and is therefore designed for use with an external monitor. If you are considering a shouldermount-style rig with eye piece, please consider the eyeSpy line of DSLR rigs shown in recommended items.

Similar Rigs:


eyeSpy Deluxe: This kit is for the one-man-band filmmaker who needs it all, a follow focus for accurate focus pulling, weights for a steadier more comfortable shoot, and the mobility of a shoulder mount.

DSLR Cinema Bundle: This rig is ideal for studio and tripod work in which both a Mattebox and Follow Focus is necessary.


DSLR Field Cinema Bundle V2 Accessories


microArms

By purchasing a microArm you add the ability to change the position of your accessories to the exact position that feels comfortable for you. You can attach the microArm directly to the microMount that is included in the DSLR Field Bundle, and have the flexibility of angling or offsetting your monitor where ever you need.


microRiser

Cameras like the Canon 1D MKIV, Nikon D3s, or any camera with an aftermarket battery pack add-on will notice that the lens mount is higher off the rods than a standard DSLR. To compensate for this extra height and assure contact between the follow focus and the lens, we recommend purchasing the microRiser along with an additional set of rods. The microFollowFocus is then attached to the new higher set of rods, allowing the rig to use a battery pack, while still utilizing a follow focus.


microLink4 Kit

By purchasing either one of the microLink4 versions with the DSLR Field Cinema Bundle, the bundle now has the ability to transform from into an eyeSpy Deluxe Bundle. There are two different microLink4 versions however. The microLink4 Riser offset kit is designed to bring a standard DSLR and a third party viewfinder right up to the operators eye. However, if the camera has a battery pack add-on or is built taller than a standard DLSR (such as a 1D Mark IV) than the microLink4 Flat offset kit is the correct offset.


microMatteBox Deluxe Bundle

The microMatteBox Deluxe Bundle has everything a professional would expect in a Mattebox. Sporting two standard 4x5.65" filter stages that are 360 degree rotatable, a 15mm swing away arm for easy lens removal, and a complete flag kit for additional light and flare management. Rubber donuts also provide a flexible method of fitting your 35mm lenses or camera to the microMatteBox to prevent light leaks.


Lens Gears:

Our microFollowFocus Gears are no longer included in any DSLR bundle. However, these microFollowFocus Gears are still available on our site for purchase separately.


Want to know how to measure your lenses for microLensGears? click here
This section is currently being updated
